Products specifications
| Attribute name | Attribute value |
|---|---|
| General Information | |

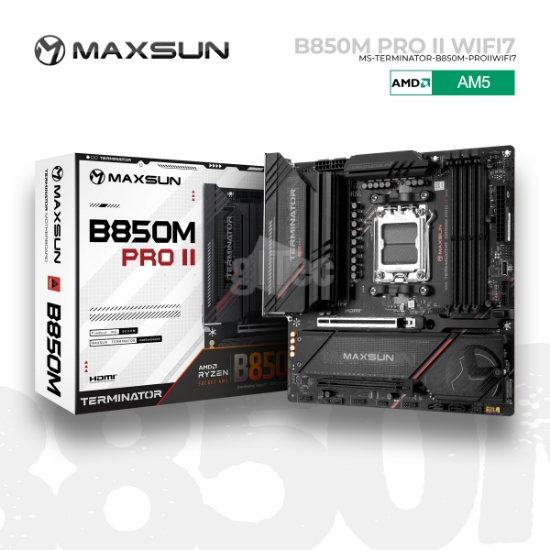

| Model | MS-Terminator B850M PRO II WIFI7 |
| Manufacturer | MAXSUN |
| Official Manufacturer Link | https://www.maxsun.com/products/ms-terminator-b850m-pro-ii-wifi7 |
| Warranty | 1 Year |
| Motherboard Specifications | |
| CPU Compatibility | AMD |
| Socket | AM5 |
| Form Factor | M-ATX |
| Chipset | AMD® B850 chipset |
| Memory | DDR5 |
| Memory Slot Numbers | 4 |
| PCIE Slot | 1 × PCIe x16 slot (PCIe 5.0 x16) 1 × PCIe x16 slot (PCIe 4.0 x4) |
| Storage | 2x M.2 PCIe 5.0 x4/x2 2280 Slot - 1x M.2 PCIe 4.0 x4 2280 Slot |
| USB | - 4x USB 5Gbps Type-A, 4x USB 2.0 Type-A - 1x USB 10Gbps Type-C |
| LAN | 1× Realtek RTL8125D 2.5G Ethernet port |
| Wifi | Yes, 1× MediaTek MT7925 wireless module: supports Wi-Fi 7 and Bluetooth v5.4 |
| Internal IO | 1 × 24-Pin ATX power 2 × 8-Pin +12V CPU power 1 × 4-Pin CPU_FAN header 1 × 4-Pin PUMP header 2 × 4-Pin SYS_FAN headers 2 × 5V 3-Pin ARGB headers Rear CLR_CMOS reset button |
| Back Panel Ports | 1x M.2 PCIe 4.0 x4 2280 Slot - 4x USB 5Gbps Type-A, 4x USB 2.0 Type-A - 1x USB 10Gbps Type-C - 1x DisplayPort, 1x HDMI 1.4 - 1x Realtek RTL8125D 2.5GbE LAN RJ-45, 2x antena (Wi-Fi 7 / Bluetooth 5.4) |
| Max Memory Supported | 4× DIMM DDR5 slots, up to 192GB total capacity |
