Products specifications
| Attribute name | Attribute value |
|---|---|
| General Information | |

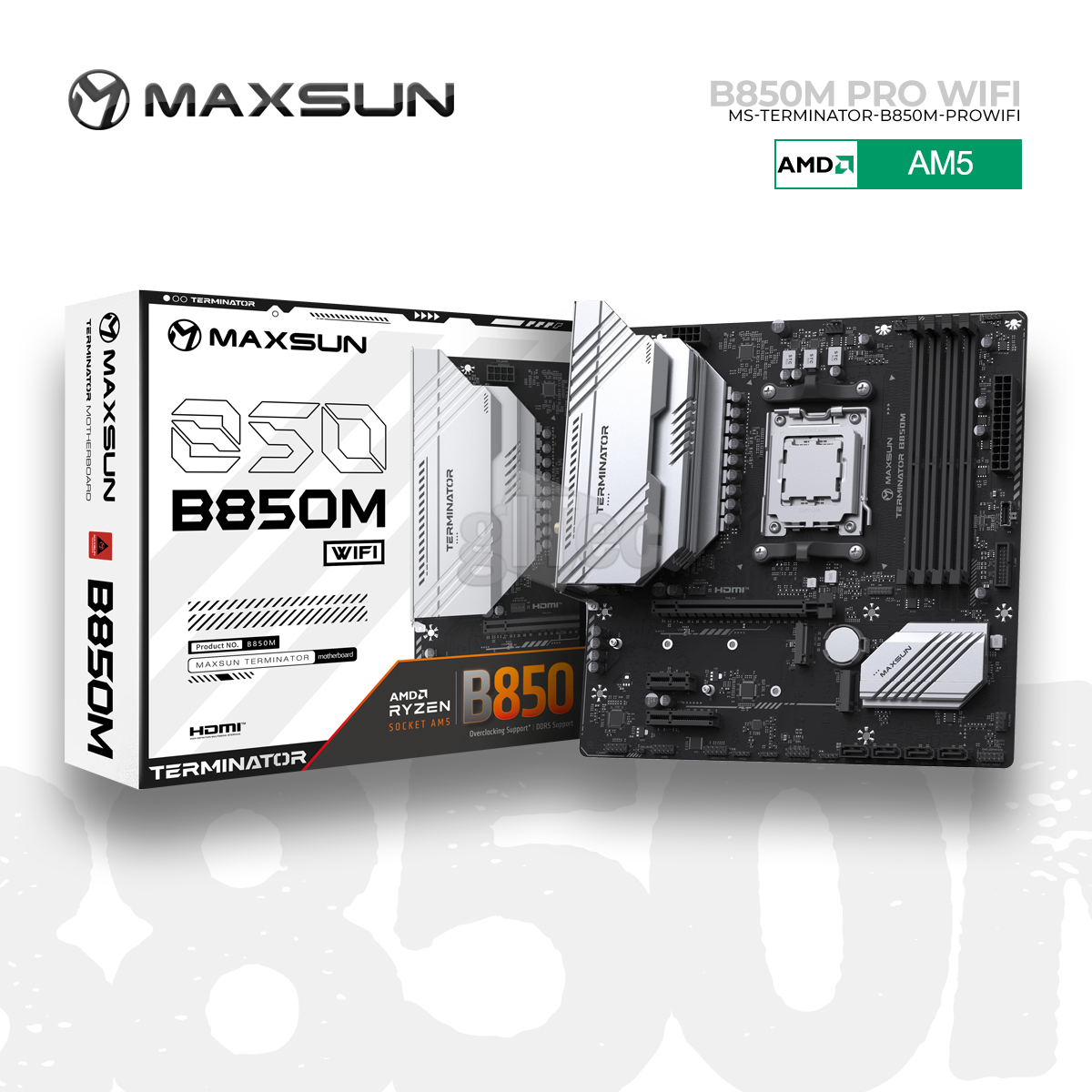

| Model | MS-Terminator B850M PRO WIFI |
| Manufacturer | MAXSUN |
| Official Manufacturer Link | https://www.maxsun.com/products/terminator-b850m-pro-wifi |
| Warranty | 1 Year |
| Motherboard Specifications | |
| CPU Compatibility | AMD |
| Socket | AM5 |
| Form Factor | M-ATX |
| Chipset | AMD B850 Chipset |
| Memory | DDR5 |
| Memory Slot Numbers | 4 |
| PCIE Slot | 1x PCIe 5.0 x16 Slot (x16 Physical) - 1x PCIe 4.0 x4 Slot (x16 Physical) |
| Storage | - 2x M.2 2280 PCIe 5.0 x4 NVMe SSD Slots - 1x M.2 2280 PCIe 4.0 x2 NVMe SSD Slot, 2x SATA 3.0 Ports |
| USB | - 1x USB 10Gbps Type-C Port - 4x USB 5Gbps Type-A Port - 4x USB 2.0 Type-A Ports |
| LAN | 1× Realtek RTL8125D 2.5G Ethernet port |
| Wifi | Yes, 1× MediaTek MT7922 wireless module: supports Wi-Fi 6E and Bluetooth v5.2 |
| Internal IO | 1× 24-pin ATX power connector 2× 8-pin +12V CPU power connectors 1× 4-pin CPU_FAN header 1× 4-pin PUMP header 2× 4-pin SYS_FAN headers 2× 3-pin 5V ARGB headers 1× CLR_CMOS quick-access button |
| Back Panel Ports | - 1x USB 10Gbps Type-C Port - 4x USB 5Gbps Type-A Port - 4x USB 2.0 Type-A Ports - 1x HDMI 1.4 Port, 1x DisplayPort 1.2 Port - 5x 3.5mm Audio Jacks, 1x Optical S/PDIF Audio Port - 2x Antenna Connectors |
| Max Memory Supported | 4× DIMM DDR5 slots, up to 192GB total capacity |
