სპეციფიკაცია
| ატრიბუტის სახელი | ატრიბუტის მნიშვნელობა |
|---|---|
| General Information | |

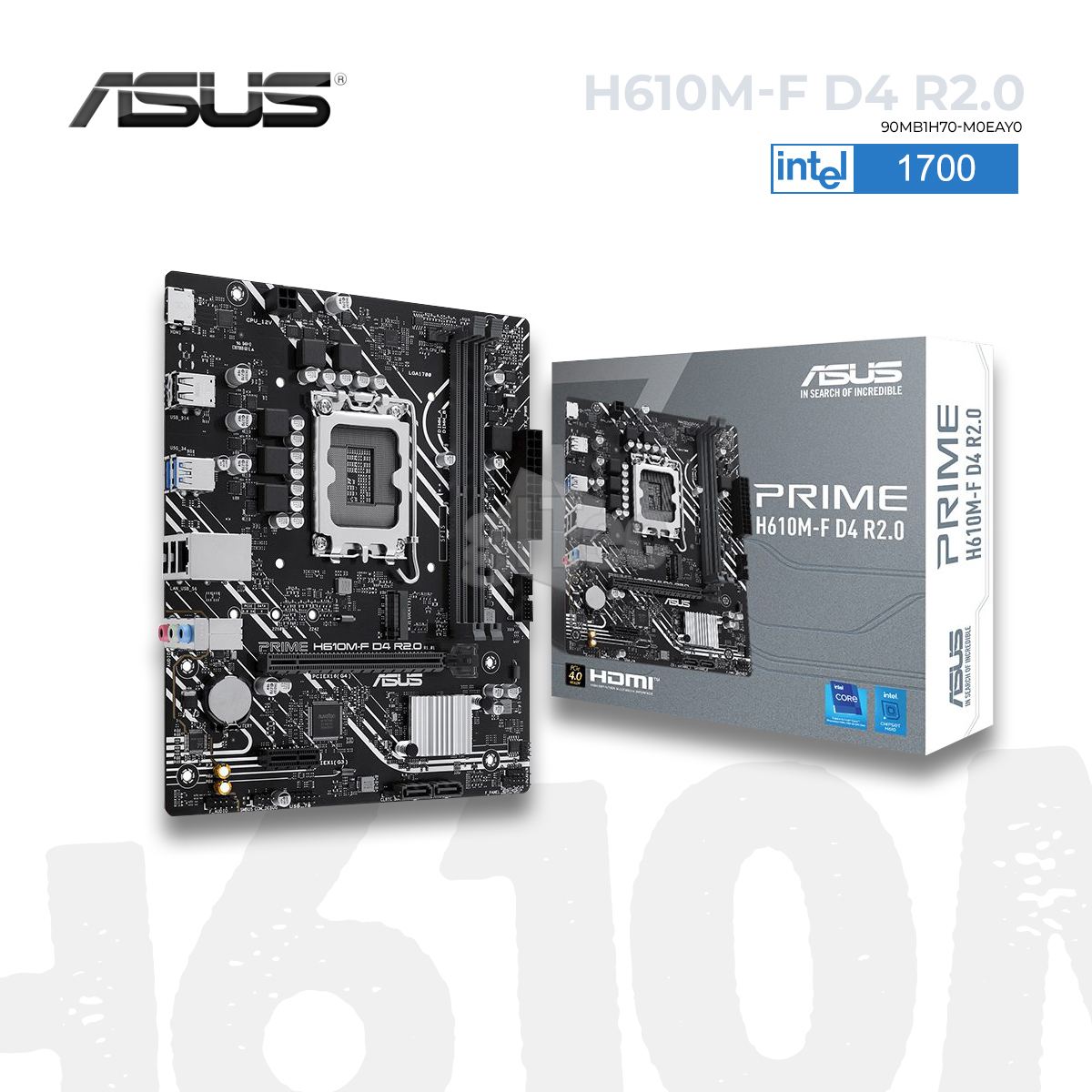

| Model | 90MB1H70-M0EAY0 |
| Manufacturer | ASUS |
| Official Manufacturer Link | https://shorturl.at/6I3Lq |
| Warranty | 1 Year |
| Motherboard Specifications | |
| CPU Compatibility | Intel |
| Socket | LGA 1700 |
| Form Factor | M-ATX |
| Chipset | H610 Chipset |
| Memory | DDR4 |
| Memory Slot Numbers | 2 |
| Max Memory Supported | Max. 64GB |
| PCIE Slot | 1 x PCIe 4.0 x16 slot |
| Storage | M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode), 2 x SATA 6Gb/s ports |
| USB | 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) |
| LAN | 1 x Realtek 1Gb Ethernet |
| Wifi | No |
| Internal IO | 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector 1 x M.2 slot (Key M) 2 x SATA 6Gb/s ports 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin System Panel header |
| Back Panel Ports | 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks |
