სპეციფიკაცია
| ატრიბუტის სახელი | ატრიბუტის მნიშვნელობა |
|---|---|
| General Information | |

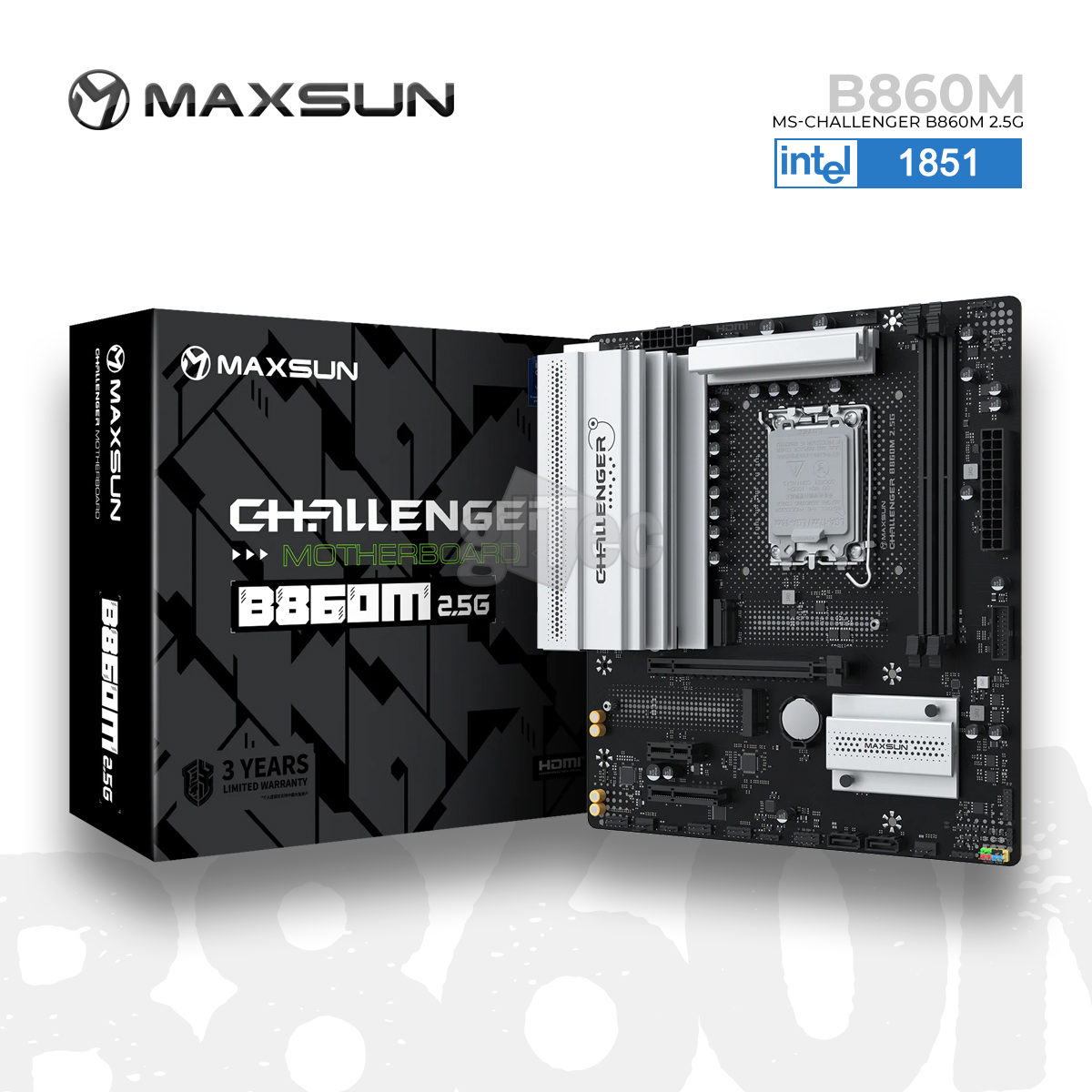

| Model | MS-Challenger B860M 2.5G |
| Manufacturer | MAXSUN |
| Official Manufacturer Link | https://www.maxsun.com/vi/products/ms-challenger-b860m-2-5g |
| Warranty | 1 Year |
| Motherboard Specifications | |
| CPU Compatibility | Intel |
| Socket | LGA1851 |
| Form Factor | M-ATX |
| Chipset | Intel B860 |
| Memory | DDR5 |
| Memory Slot Numbers | 2 |
| Max Memory Supported | 2x DDR5, Maximum Memory Capacity 96GB in Total |
| PCIE Slot | 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x4 slot, 1 x PCIe 4.0 x1 slot |
| Storage | 1x M.2 slot PCIe 5.0 x4, 1x M.2 slot PCIe 4.0 x4, 2x SATA III Connector (6Gb/s) ports |
| USB | 4x USB 2.0, 4x USB 3.2 |
| LAN | 2.5 Gbps Realtek Network Controller RJ-45 |
| Wifi | No |
| Internal IO | 1 x 24-Pin ATX Power Connector 1 x 8-Pin + 1 x 4-Pin Power Connector 1 x 4-Pin CPU Fan Connector 1 x 4-Pin PUMP Fan Connector 2 x 4-Pin Chassis Fan Connectors 2 x M.2 Slots (Key M) 2 x SATA 6Gb/s Interface 1 x USB 5G 19-Pin to support 2 additional USB 5G ports 1 x USB 2.0 9-Pin, support 2 additional USB 2.0 ports 2 x 3-Pin ARGB Connector 1 x 4-Pin NRGB Connector 1 x COM Port 1 x 4-Pin Buzzer Connector 1 x Front Panel Audio Connector 1 x Case Open Connector 1 x TPM Connector |
| Back Panel Ports | 4x USB 2.0, 4x USB 3.2, 1x HDMI, 1x DisplayPort, 1x RJ-45 2.5 Gigabit Port, 3x audio 3.5mm |
