სპეციფიკაცია
| ატრიბუტის სახელი | ატრიბუტის მნიშვნელობა |
|---|---|
| General Information | |

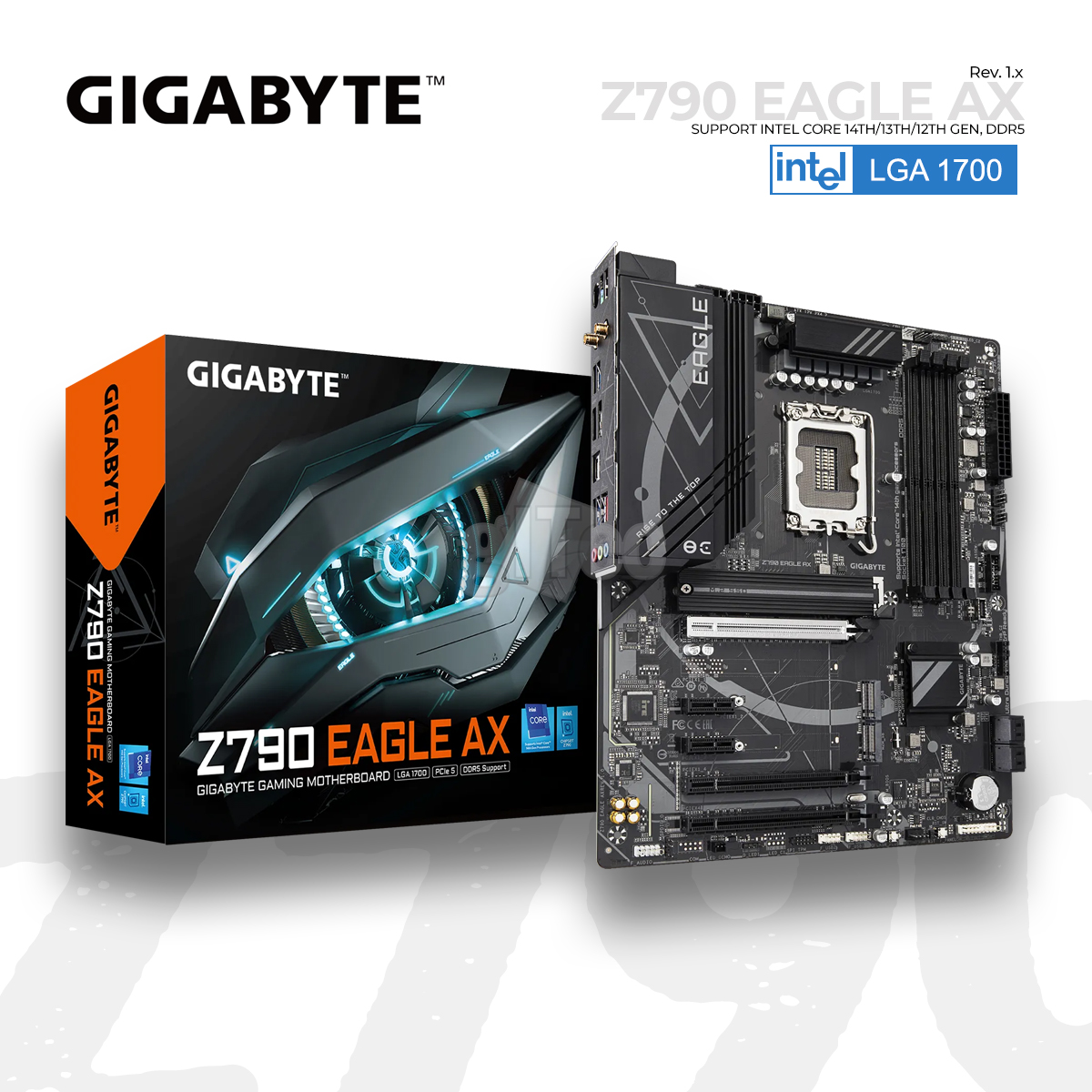

| Model | Z790 EAGLE AX |
| Manufacturer | GIGABYTE |
| Official Manufacturer Link | https://shorturl.at/RBONw |
| Warranty | 1 Year |
| Motherboard Specifications | |
| CPU Compatibility | Intel |
| Socket | LGA 1700 |
| Form Factor | ATX |
| Chipset | Intel® Z790 Express Chipset |
| Memory | DDR5 |
| Memory Slot Numbers | 4 |
| Max Memory Supported | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| PCIE Slot | - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16), - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors |
| USB | 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wifi | Yes, Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) and BLUETOOTH 5.3 |
| Internal IO | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Back Panel Ports | 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
