სპეციფიკაცია
| ატრიბუტის სახელი | ატრიბუტის მნიშვნელობა |
|---|---|
| General Information | |

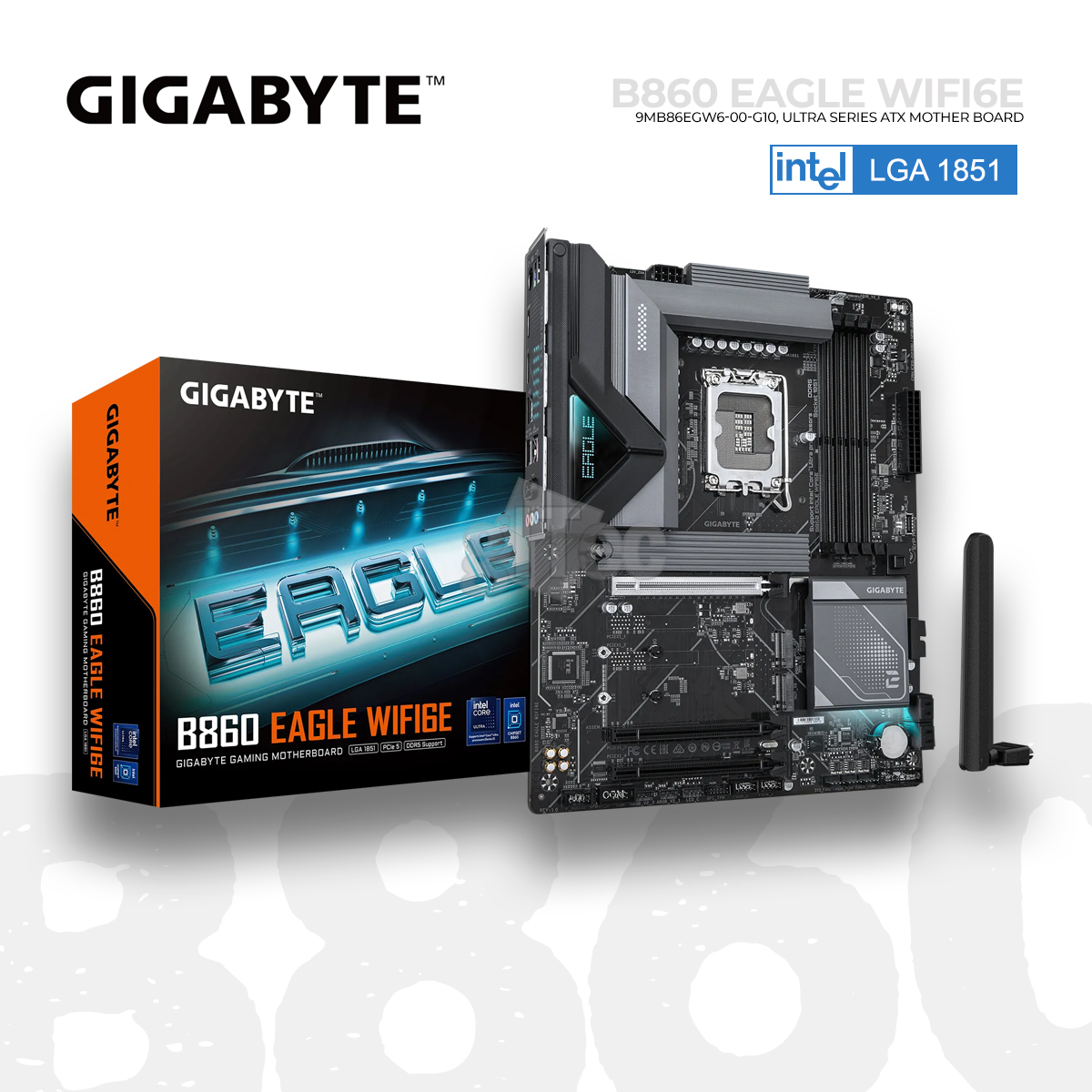

| Model | 9MB86EGW6-00-G10 |
| Manufacturer | GIGABYTE |
| Official Manufacturer Link | https://www.gigabyte.com/Motherboard/B860-EAGLE-WIFI6E |
| Warranty | 1 Year |
| Motherboard Specifications | |
| CPU Compatibility | Intel |
| Socket | LGA1851 |
| Form Factor | ATX |
| Chipset | Intel ® B860 Express Chipset |
| Memory | DDR5 |
| Memory Slot Numbers | 4 |
| Max Memory Supported | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| PCIE Slot | - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16), - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4) |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU), - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
| Raid | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wifi | Yes, module Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 |
| Internal IO | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Back Panel Ports | 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks |
