სპეციფიკაცია
| ატრიბუტის სახელი | ატრიბუტის მნიშვნელობა |
|---|---|
| General Information | |

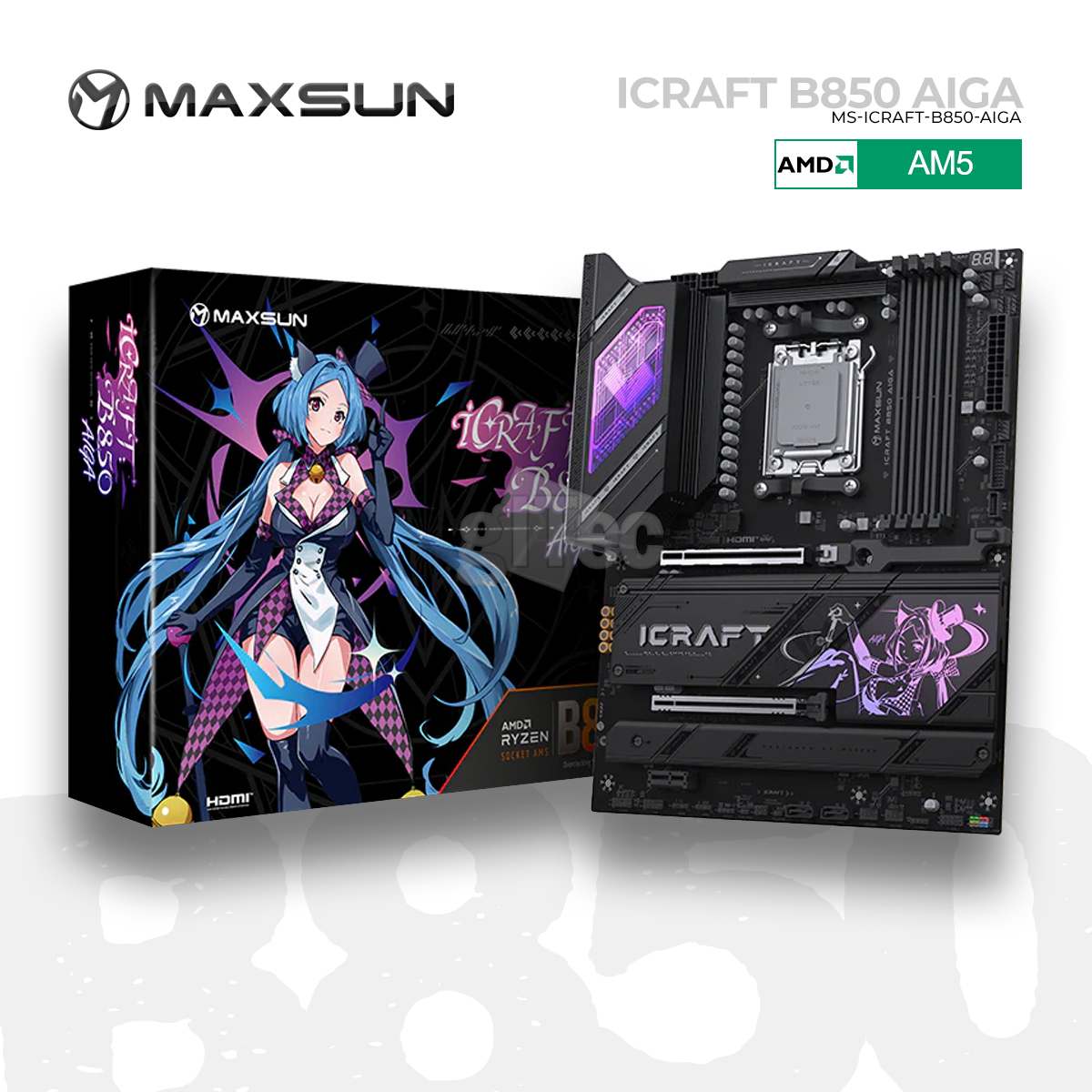

| Model | MS-iCraft B850 AIGA |
| Manufacturer | MAXSUN |
| Official Manufacturer Link | https://shorturl.at/jhg73 |
| Warranty | 1 Year |
| Motherboard Specifications | |
| CPU Compatibility | AMD |
| Socket | AM5 |
| Form Factor | ATX |
| Chipset | AMD® B850 chipset |
| Memory | DDR5 |
| Memory Slot Numbers | 4 |
| Max Memory Supported | 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB) |
| PCIE Slot | 1x PCIe 5.0 x16/x8 Slot (x16 Physical) - 1x PCIe 5.0 x8 Slot (x16 Physical) - 1x PCIe 3.0 x1 Slot (x1 Physical) |
| Storage | 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot - 1x M.2 22110/2280 PCIe 5.0 x4 NVMe SSD Slot - 2x M.2 22110/2280 PCIe 4.0 x2 NVMe SSD Slots - 2x SATA 3.0 Ports |
| USB | 1x USB 10Gbps Type-C Port with DisplayPort 1.4 - 4x USB 10Gbps Type-A Port - 4x USB 2.0 Type-A Ports |
| LAN | Realtek 5 Gigabit Ethernet RJ-45 LAN Port |
| Wifi | Yes, Mediatek WiFi 7 Tri-Band Adapter, Bluetooth 5.4 |
| Internal IO | 1 × 24-pin ATX Power Connector 2 × 8-pin +12V CPU Power Connectors, 3 × 3-pin ARGB headers 1 × 4-pin NRGB header, 1 × COM port header 1 × CLR_CMOS reset header 1 × 4-pin CPU fan header 1 × 4-pin PUMP header (DC control supported) 4 × 4-pin chassis fan headers |
| Back Panel Ports | 1x USB 10Gbps Type-C Port with DisplayPort 1.4 - 4x USB 10Gbps Type-A Port - 4x USB 2.0 Type-A Ports - 1x HDMI 2.0 Port - 1x DisplayPort 1.4 Port - 5x 3.5mm Audio Jacks, 1x Optical S/PDIF Audio Port - 2x Antenna Connectors |
